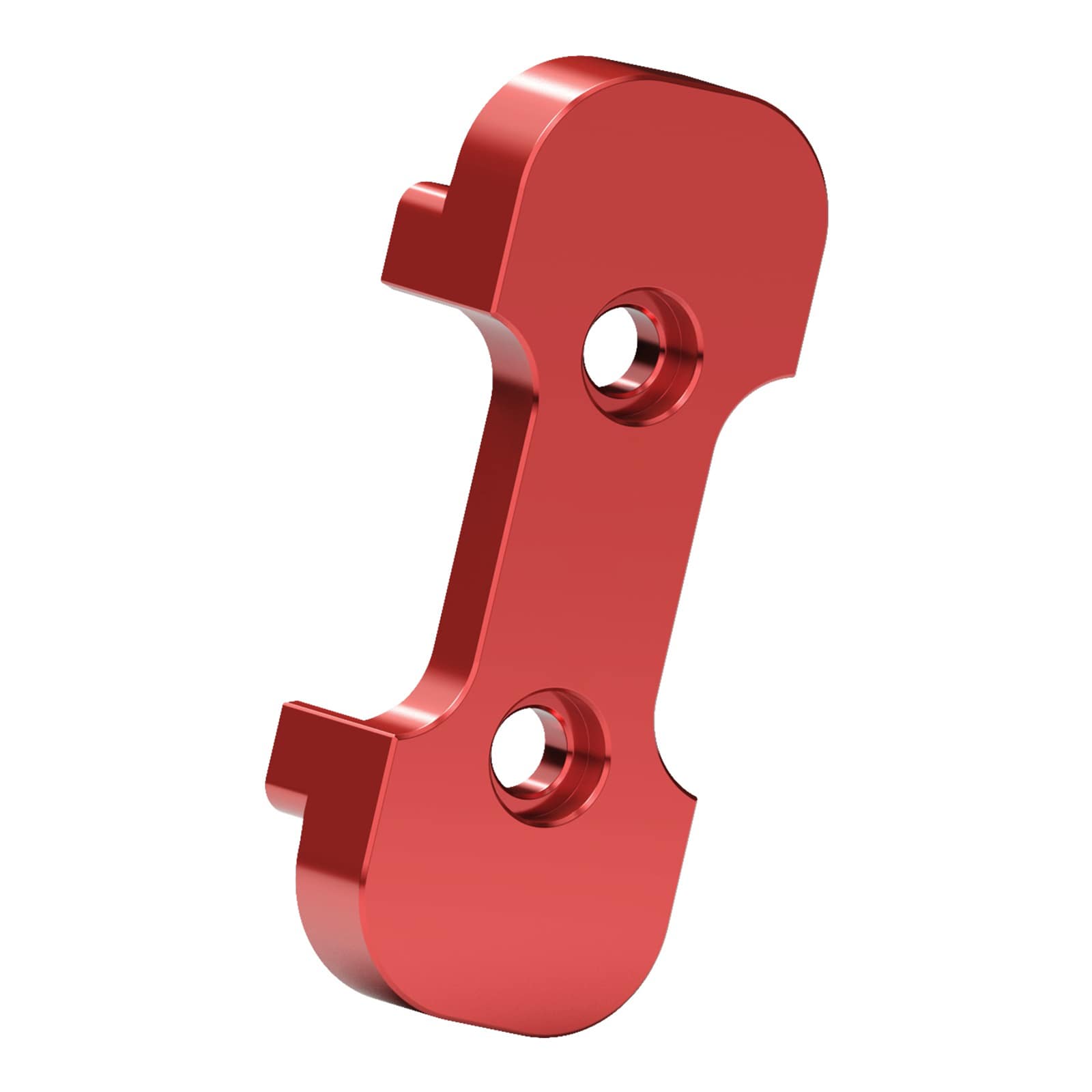

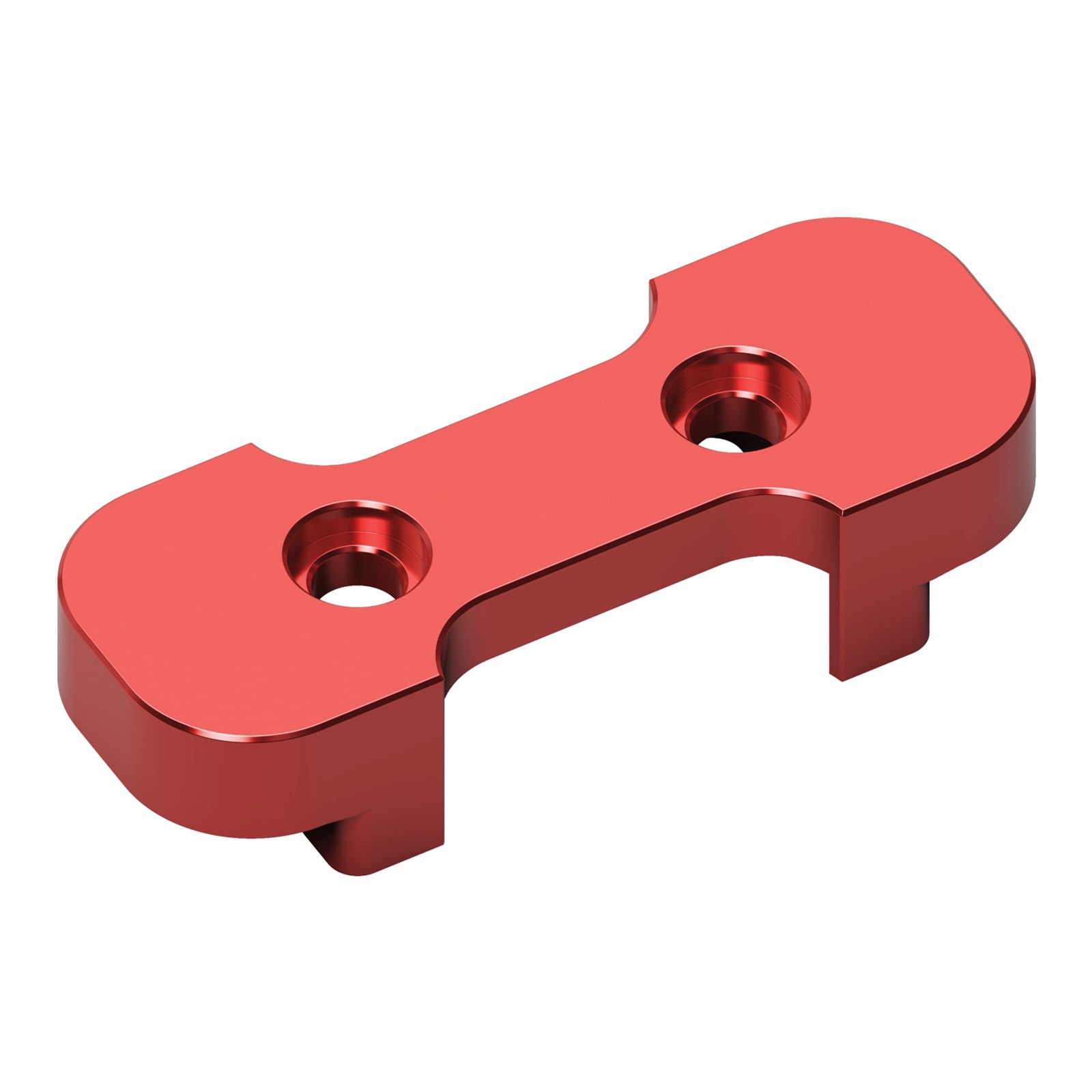

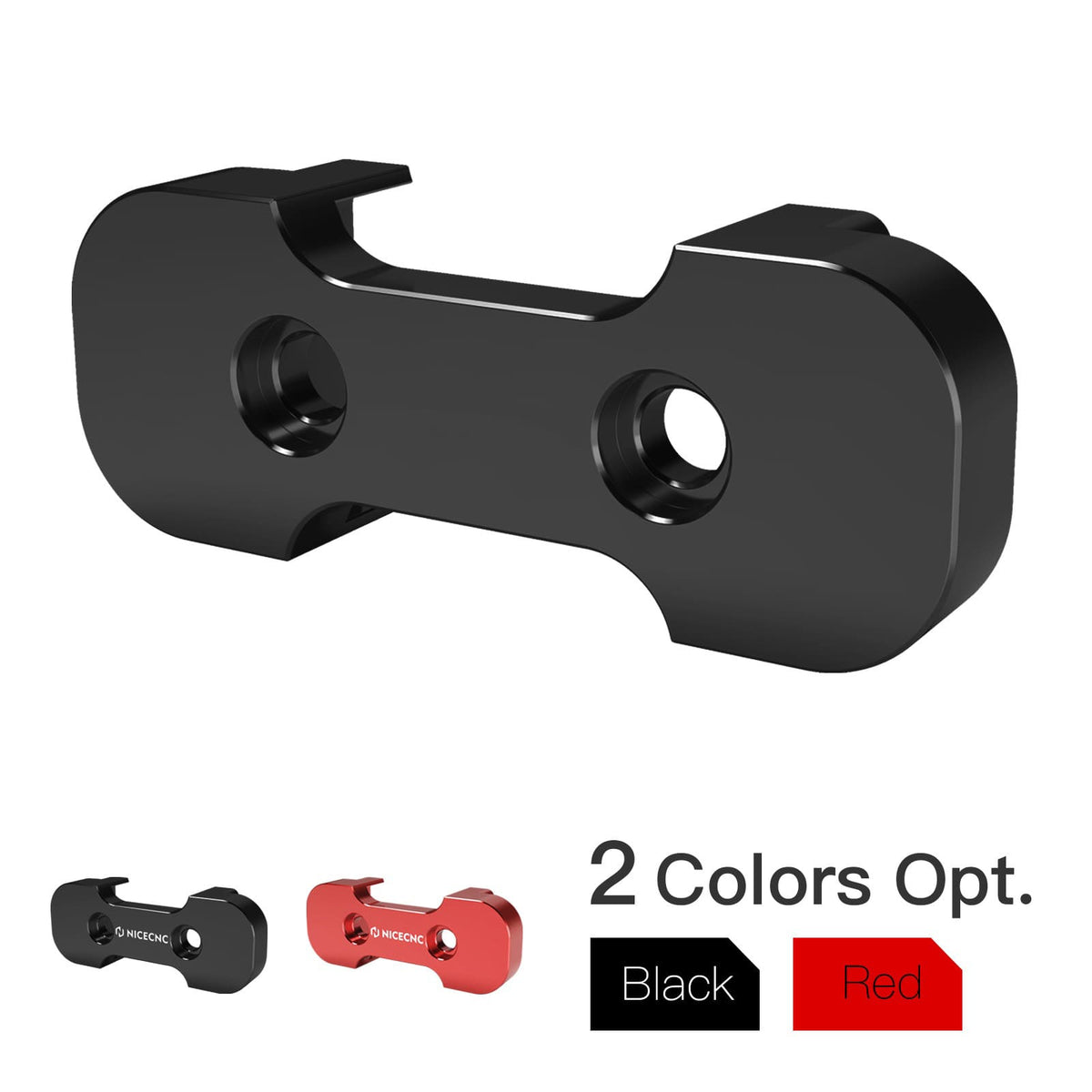

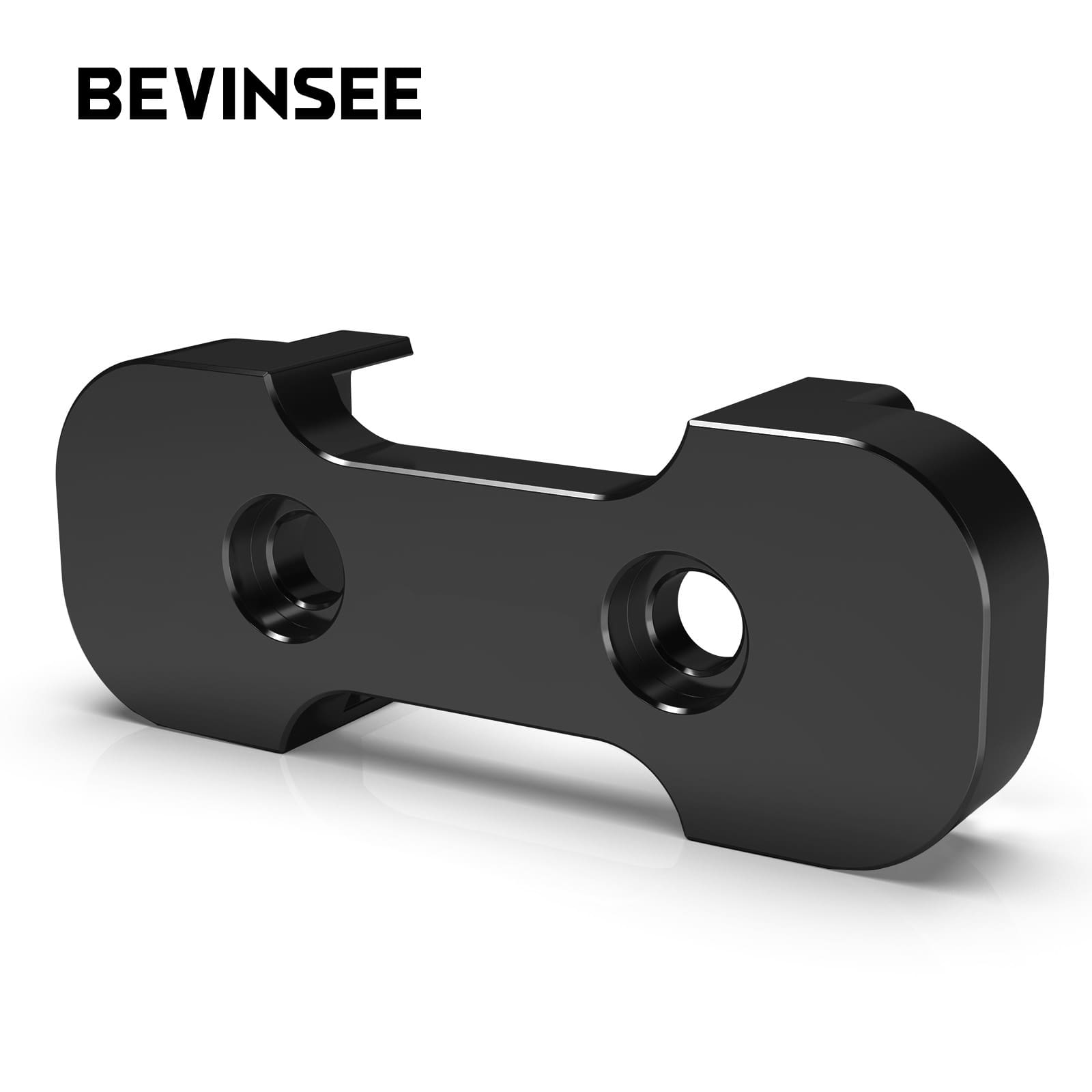

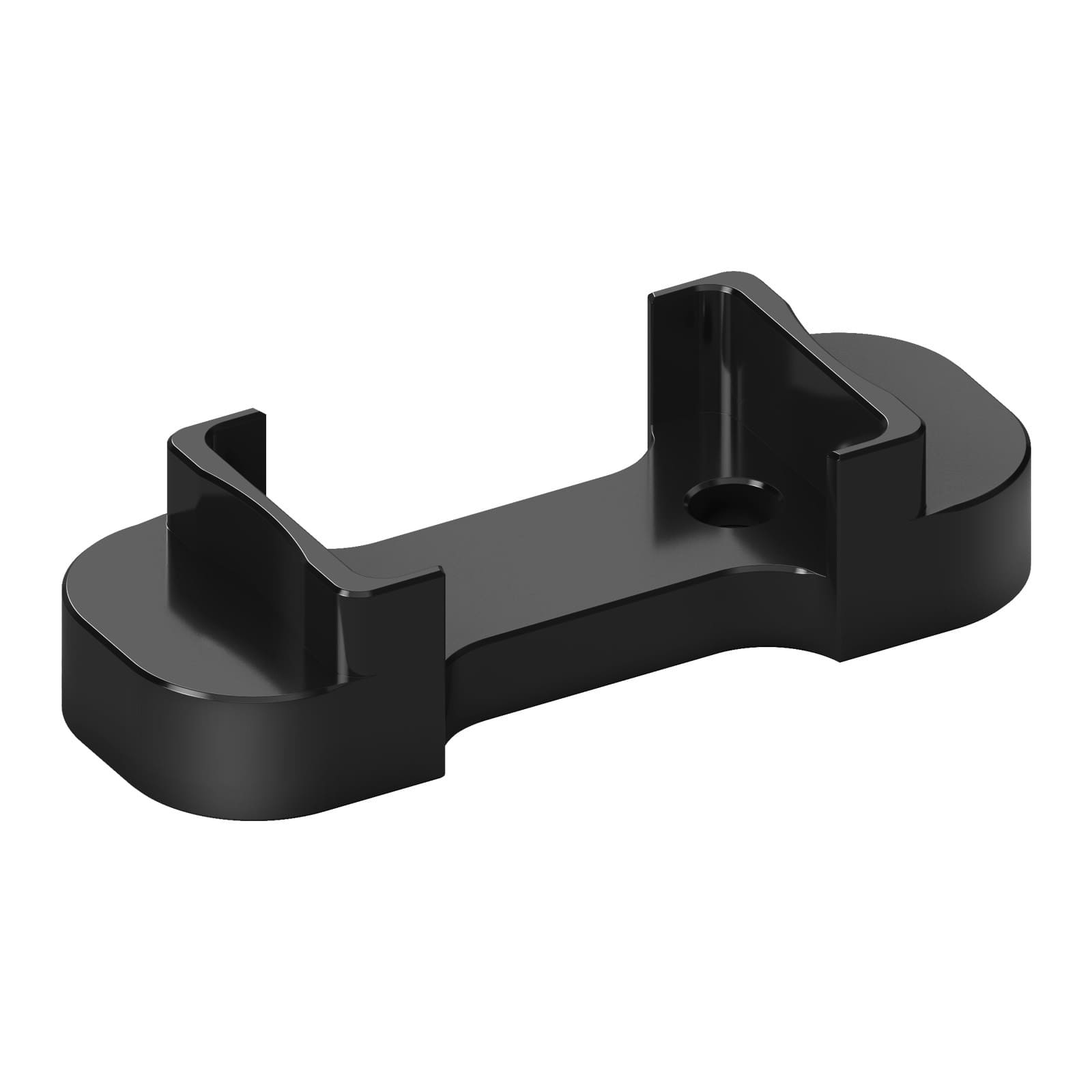

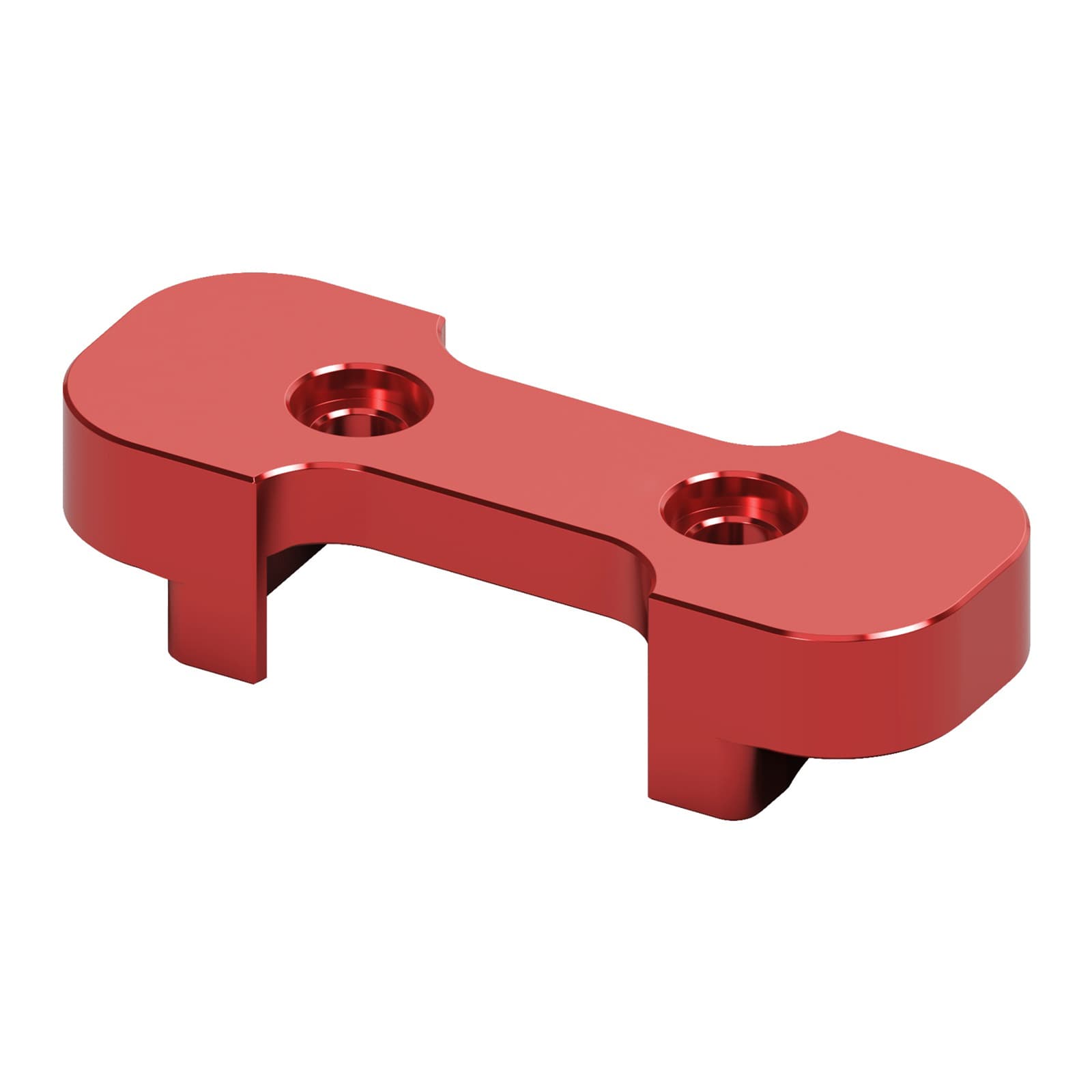

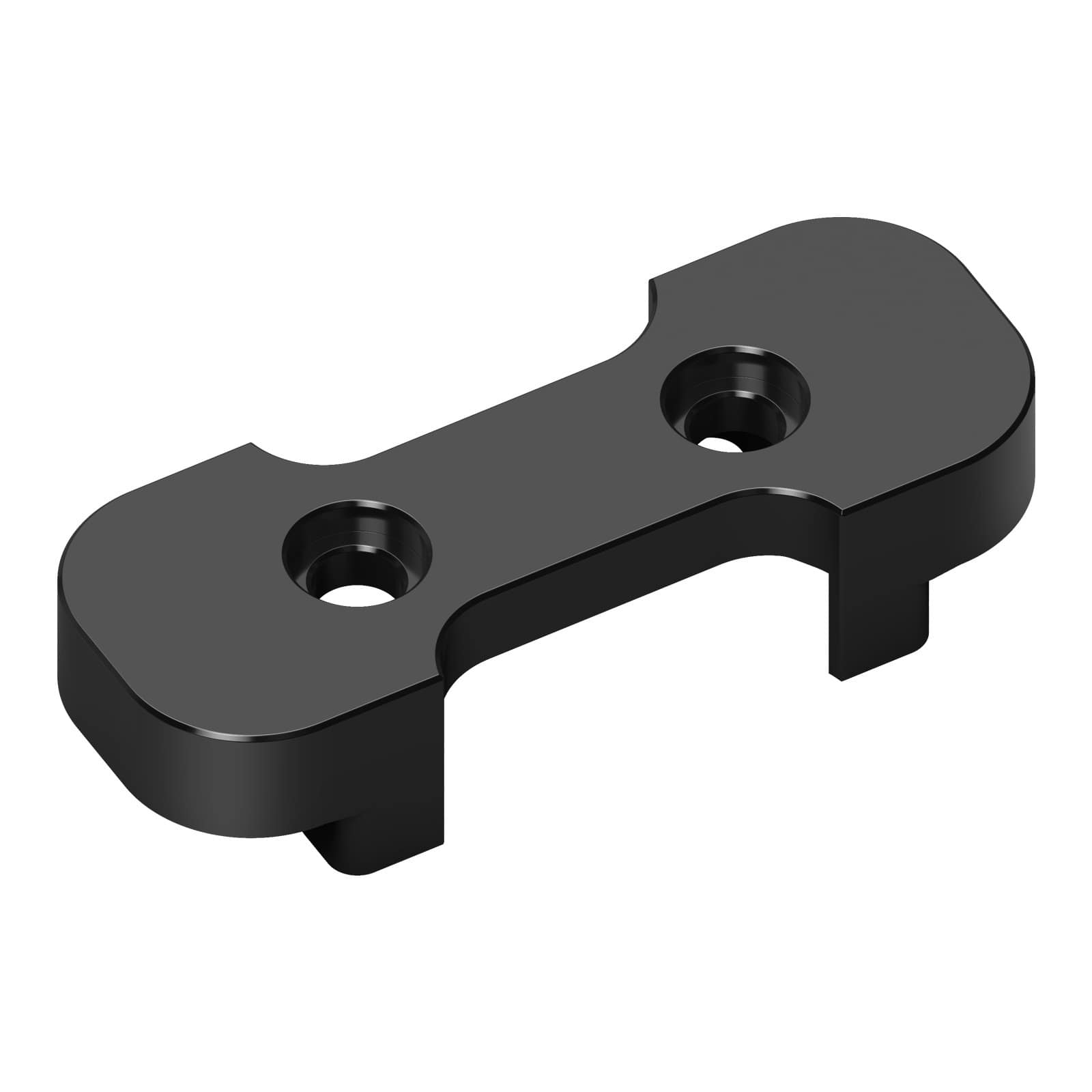

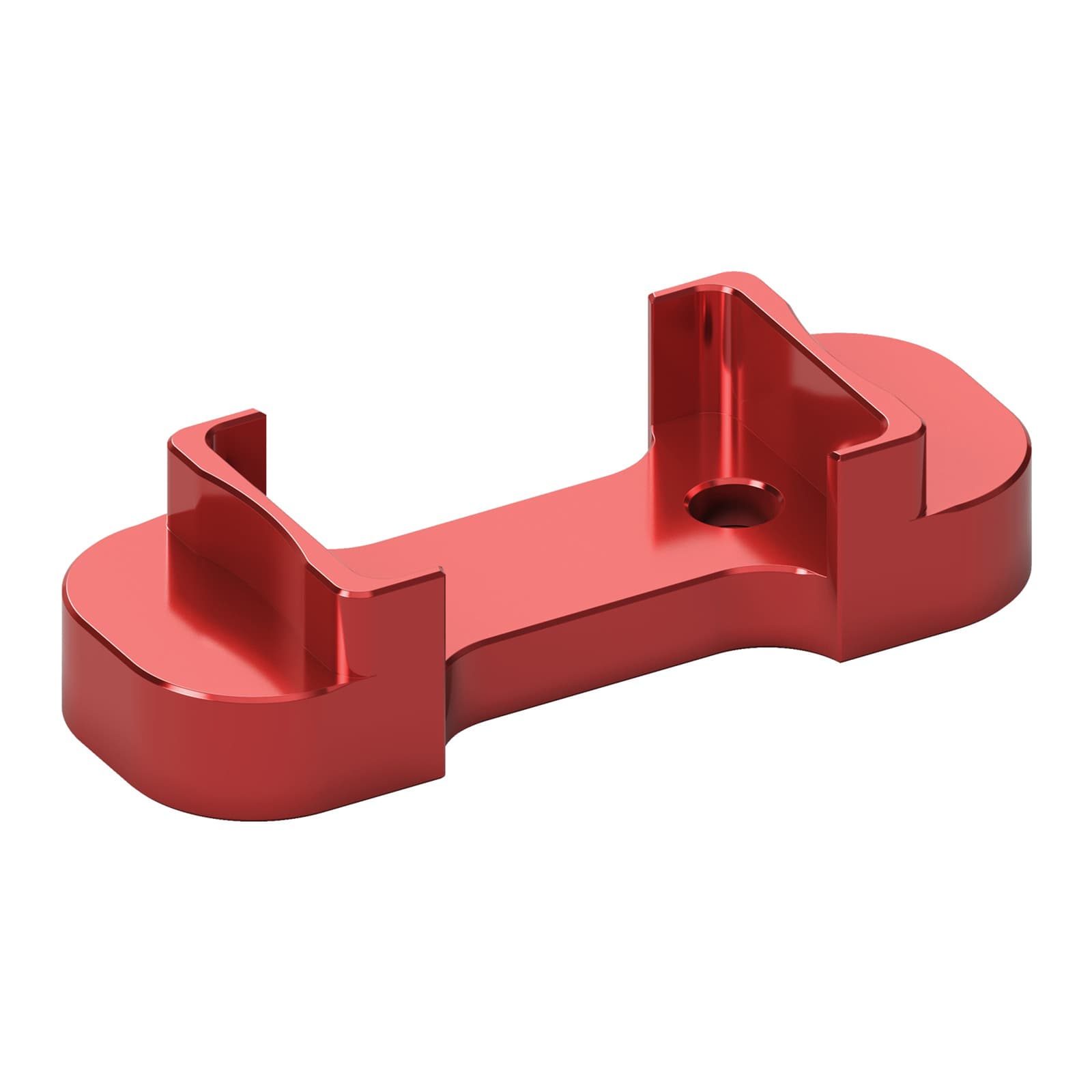

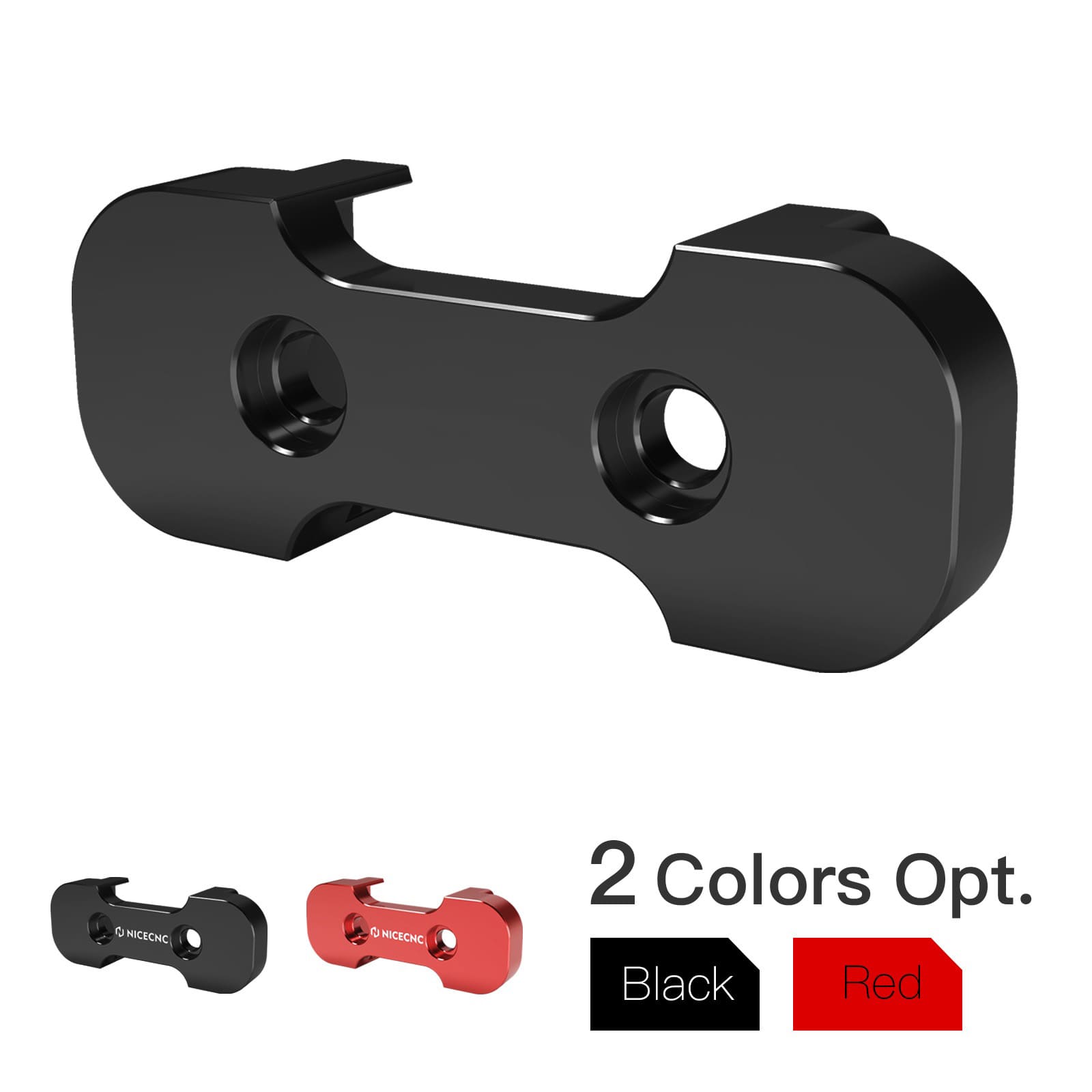

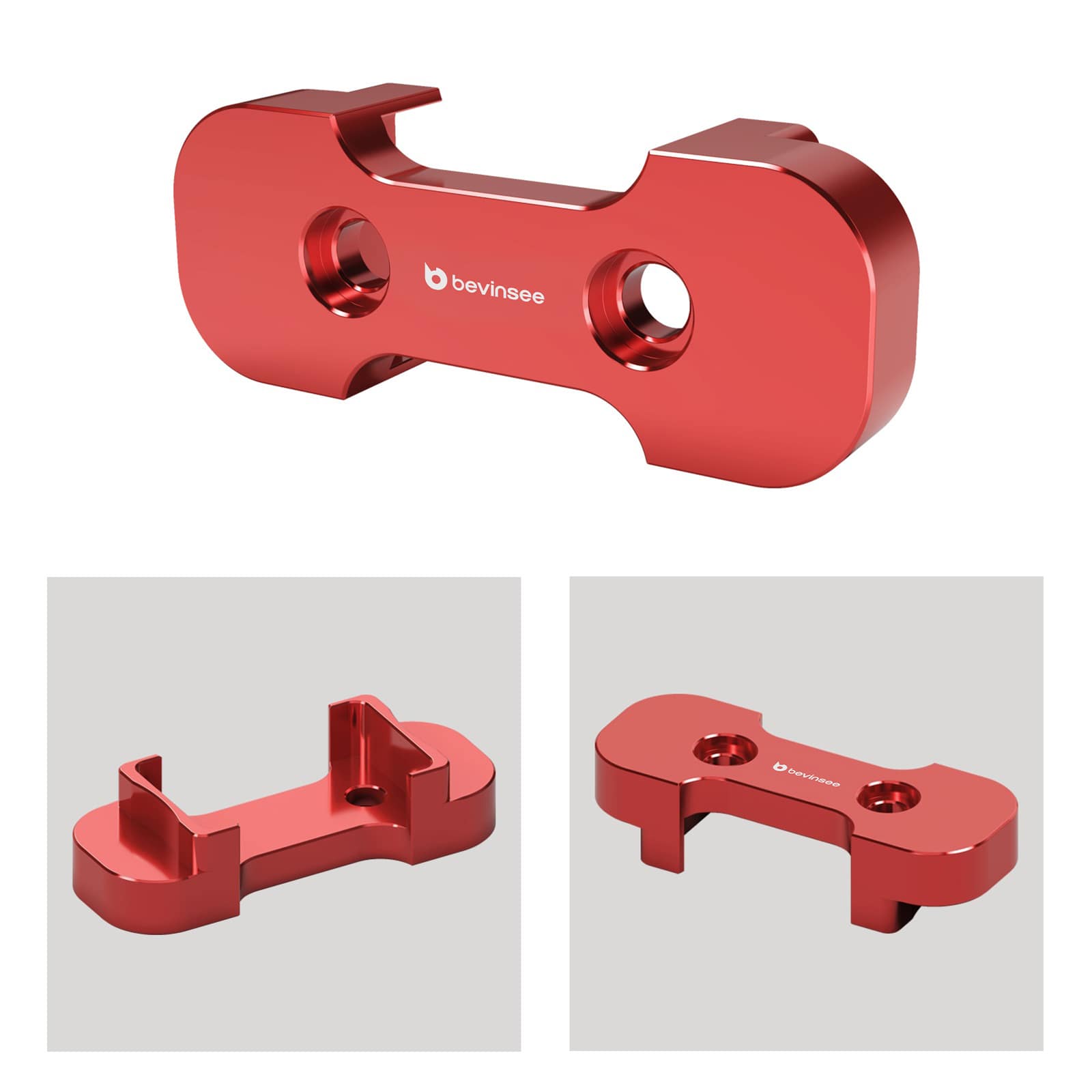

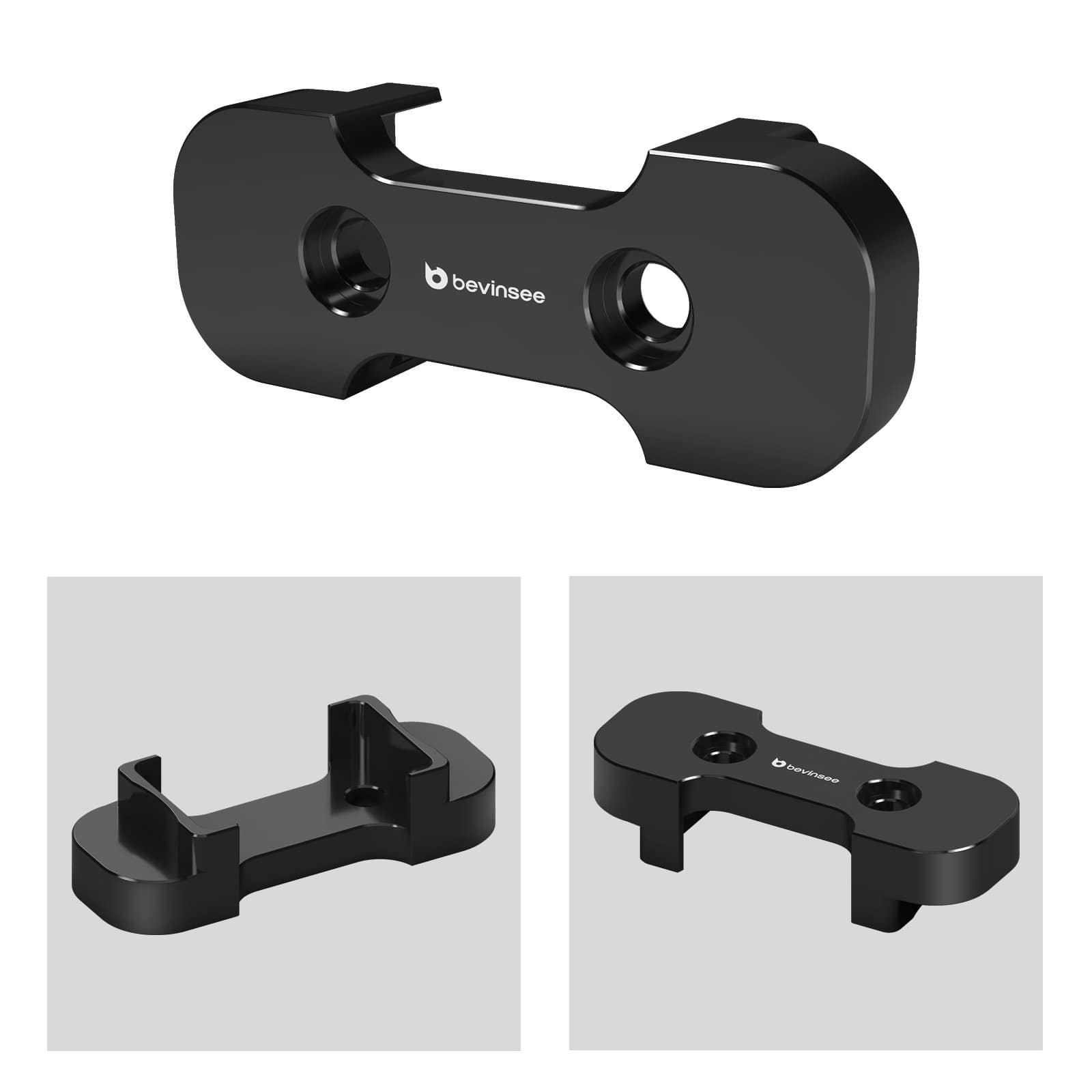

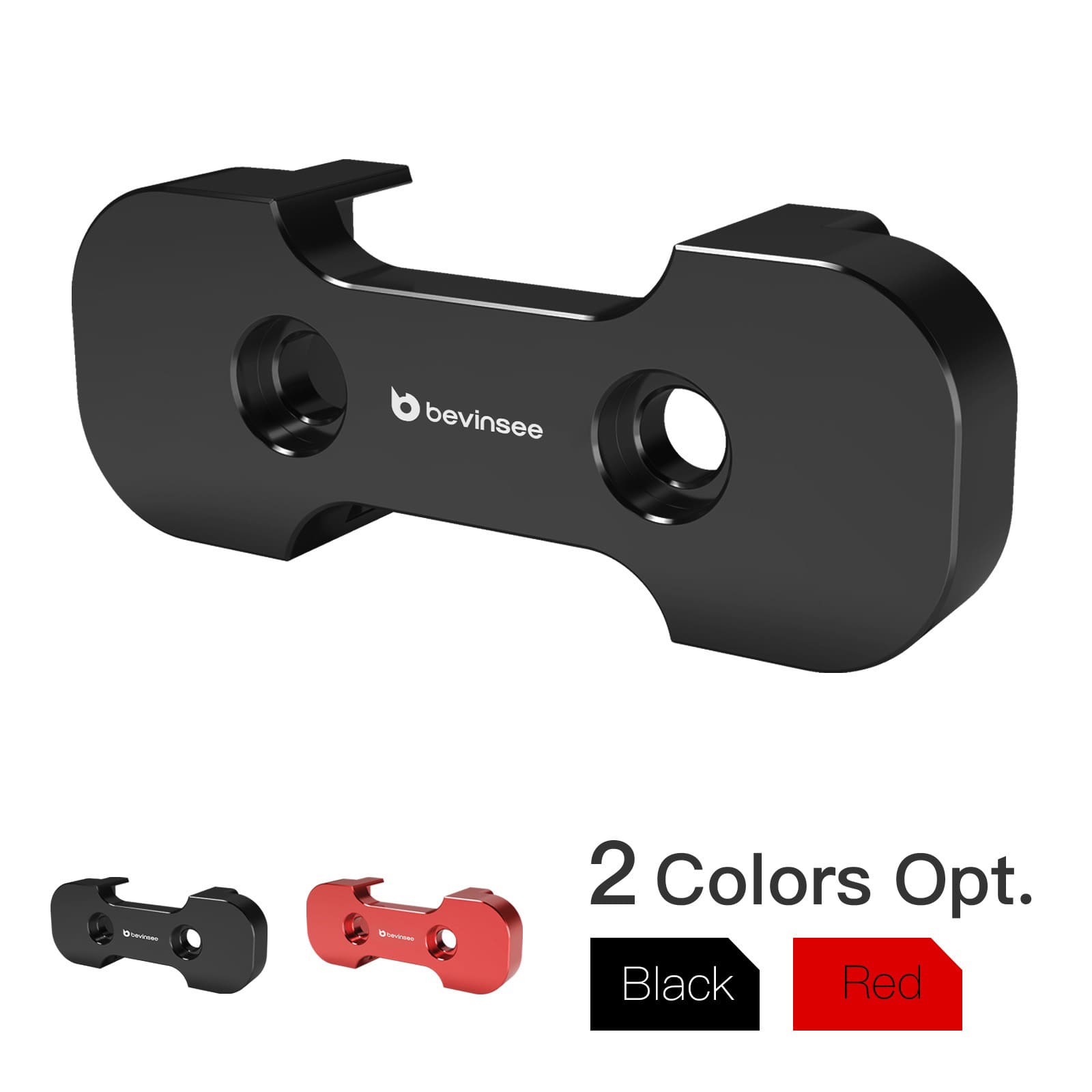

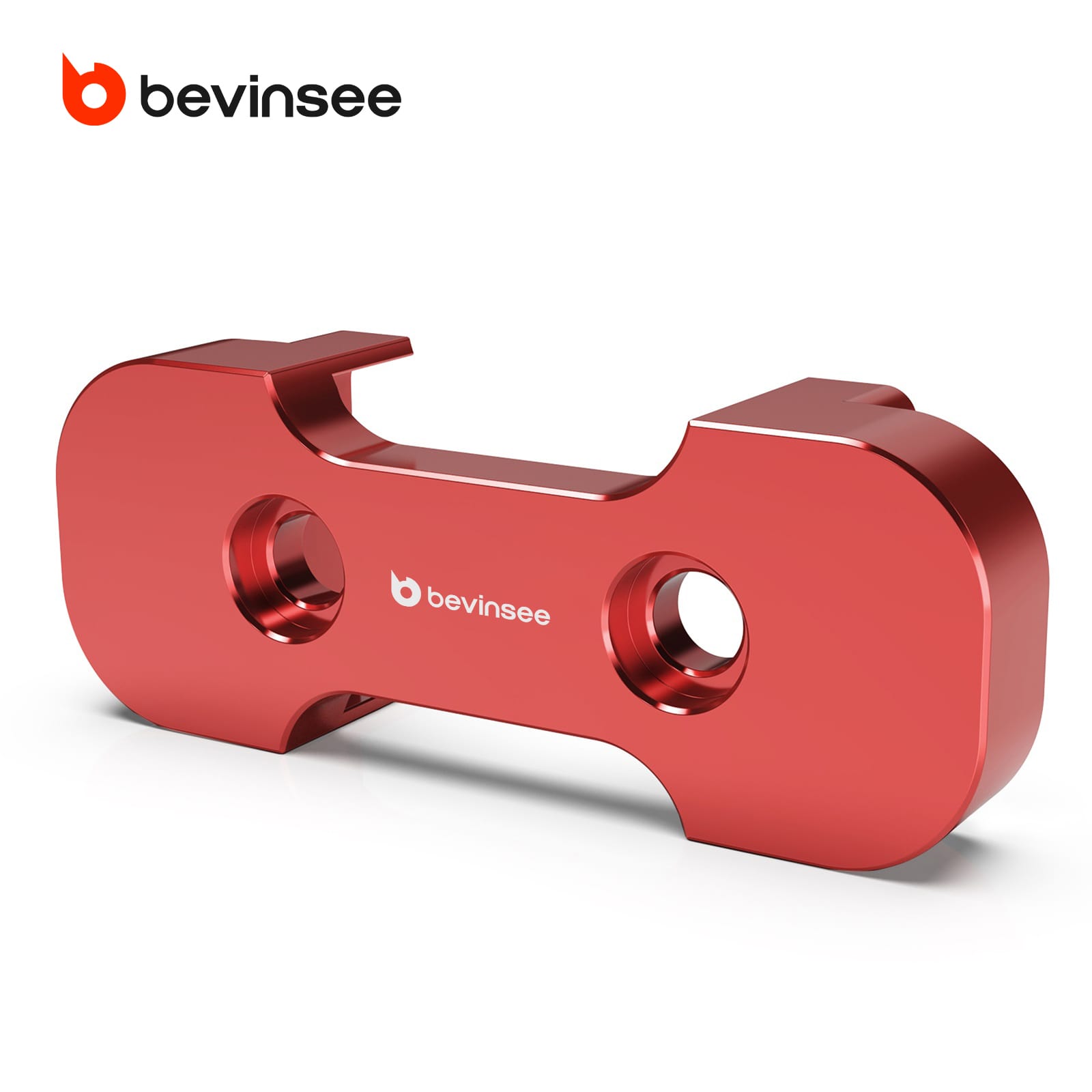

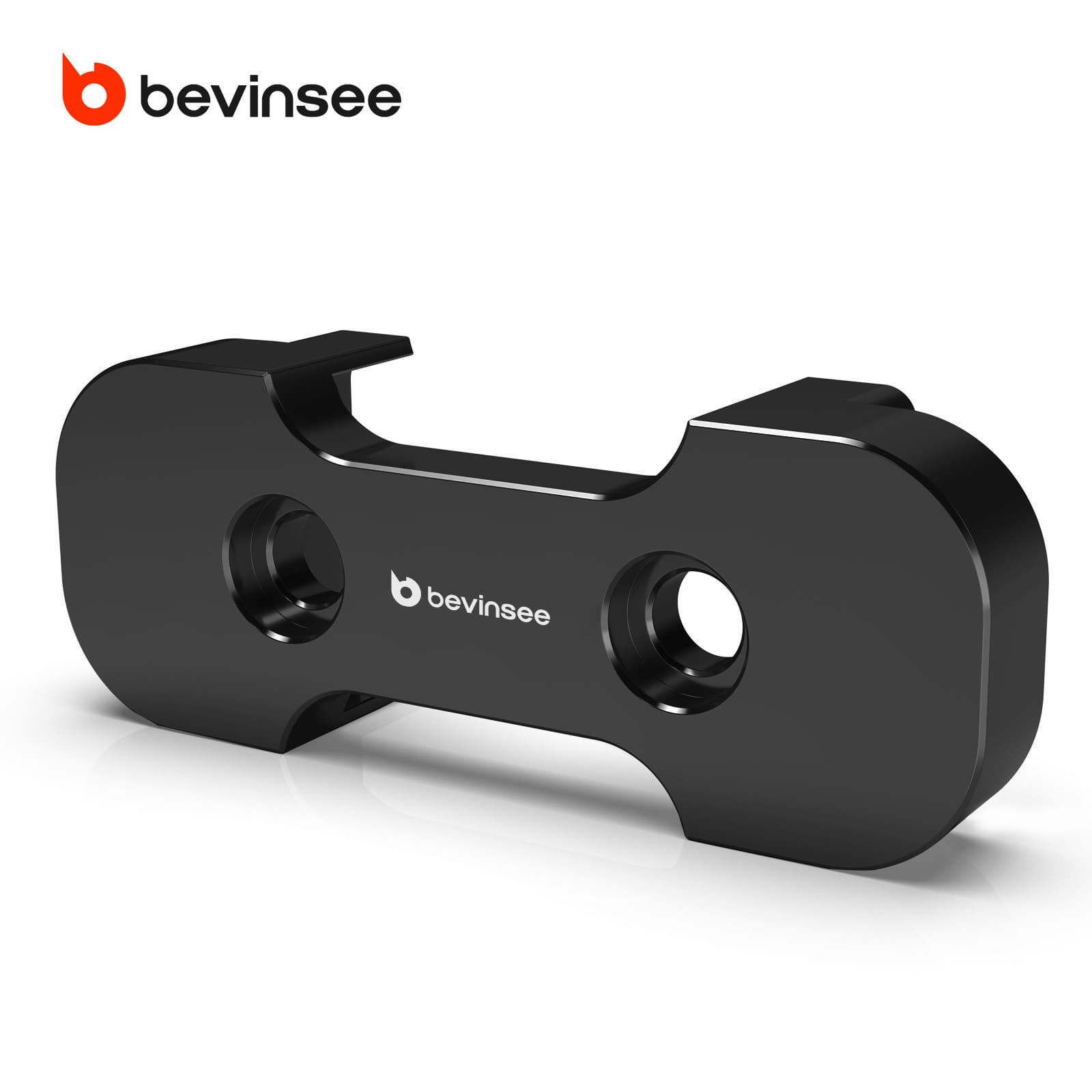

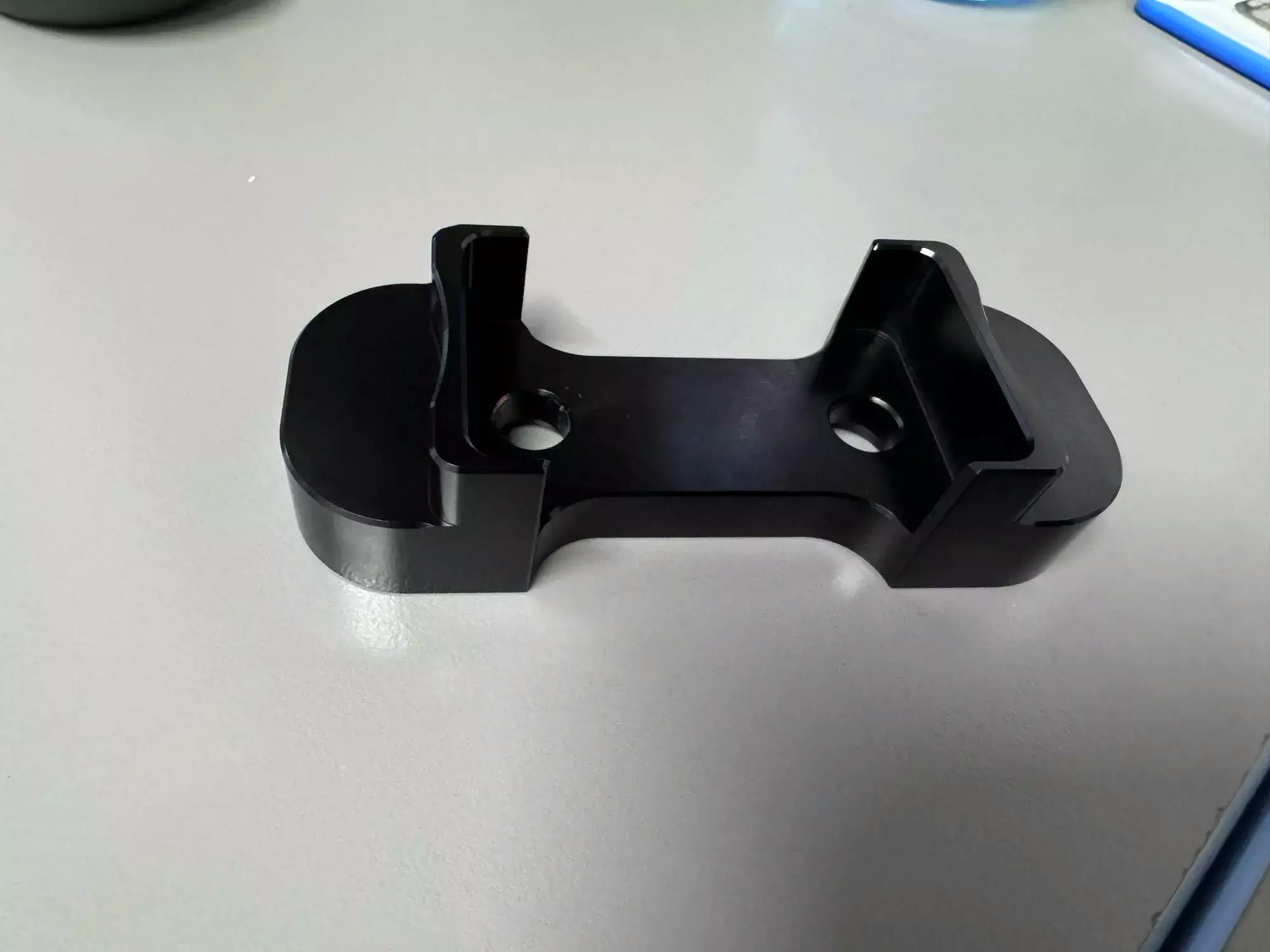

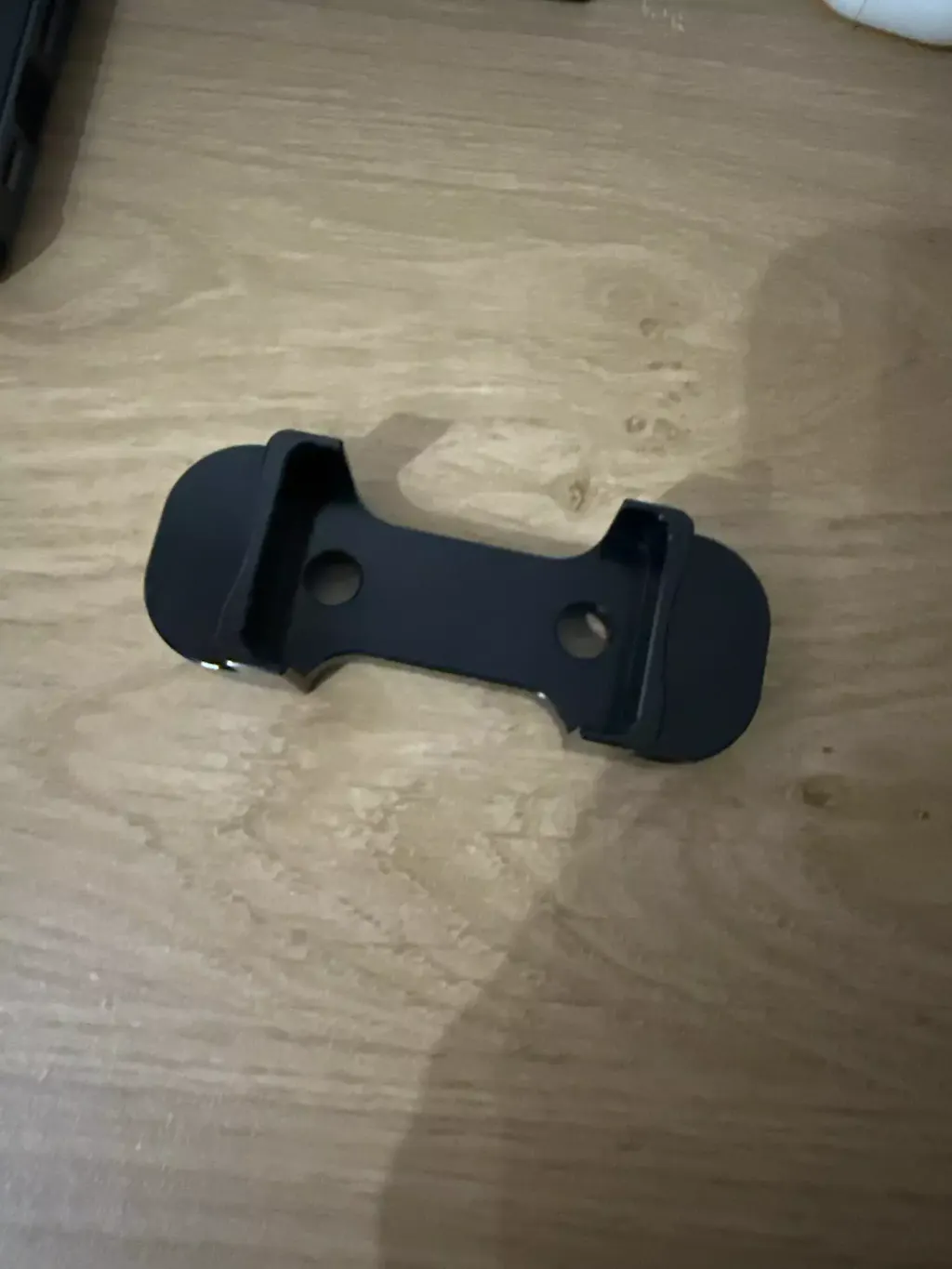

Transmission Mount Insert For B9 Audi A4/S4 A5/S5/RS5 Q5/SQ5 Allroad
Couldn't load pickup availability
Features:
- Designed to fill the void of factory transmission mount.
- Dramatically reduces transmission movement during shifting and decelerating.
- Improved shift feel for crisper shifts. Deliver a responsive shifting experience and elevate the performance of your car.
- Will not cause additional NVH transfer inside the cab.
- CNC machined from billet aluminum, super lightweight and keep stable even on bumpy roads.
Specification:
- Brand: Bevinsee
- Condition: 100% Brand New
- Material: Aluminum
- Surface Finish: Anodized
- Processing: CNC-machined
Package Included:
1x Transmission Mount Insert
Fitment:
For Audi A4 (B9/B9.5) 2017 - Present 2.0t TFSI
For Audi S4 (B9/B9.5) 2018 - Present 3.0t TFSI
For Audi A5 (B9/B9.5) 2018 - Present 2.0t TFSI
For Audi S5 (B9/B9.5) 2018 - Present 3.0t TFSI
For Audi SQ5 (B9) 2018 - Present 3.0t TFSI
For Audi Allroad (B9) 2017 - Present 2.0t TFSI
Note:Only Fits 7-Speed S-tronic, 8-Speed Tiptronic, & 6-Speed Manual Transmissions.
Installation Instructions:
Tools required:
10mm Multi-spline driver, extension bar and suitable ratchet.
1. To avoid injury allow the vehicle to cool down fully before starting this installation.
2. Raise the vehicle on a ramp or using a jack and support with suitable axle stands.
3. Using a 10mm Multi-spline driver, extension bar and suitable ratchet undo the 2x bolts on the OEM bush,remove the factory transmission mount bracket

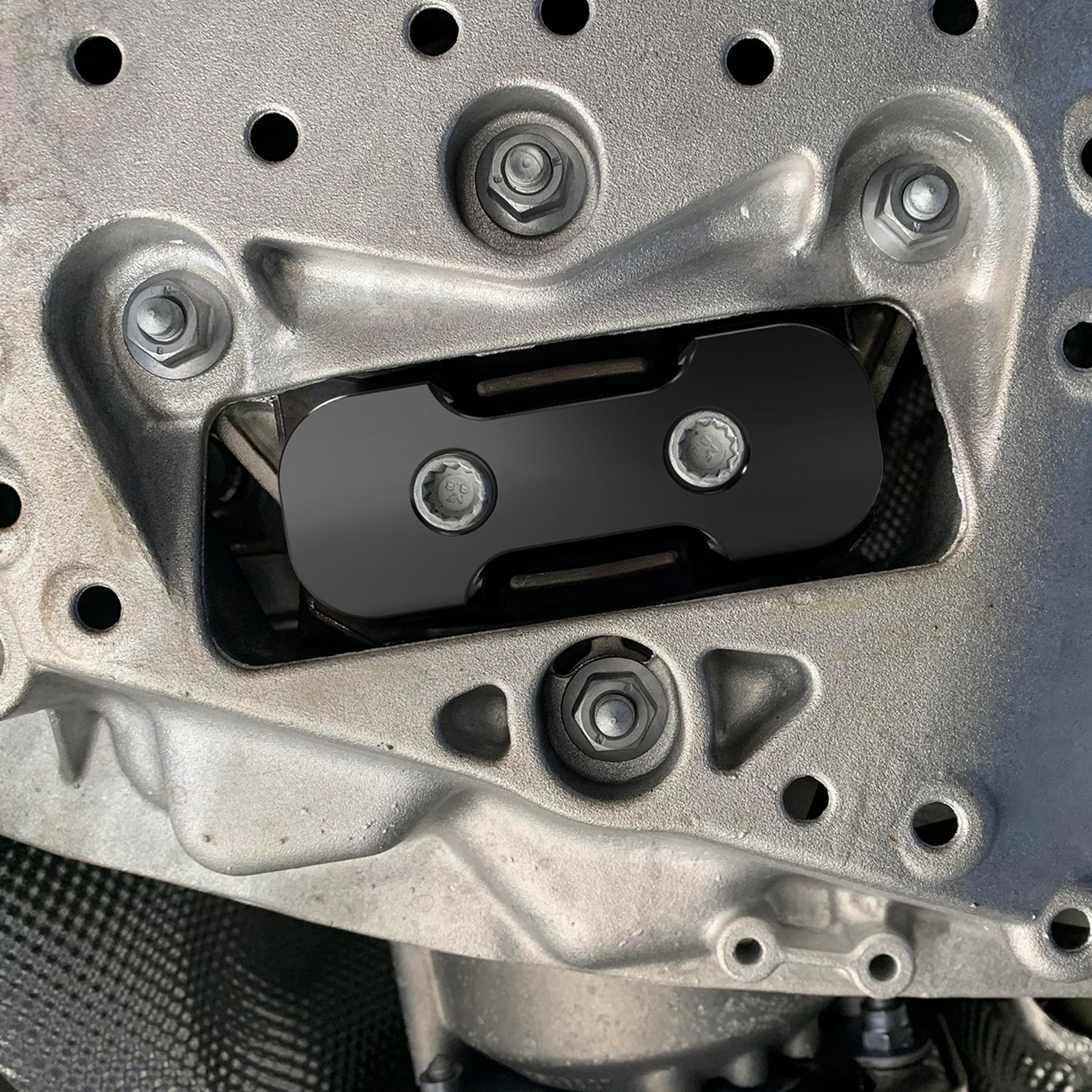

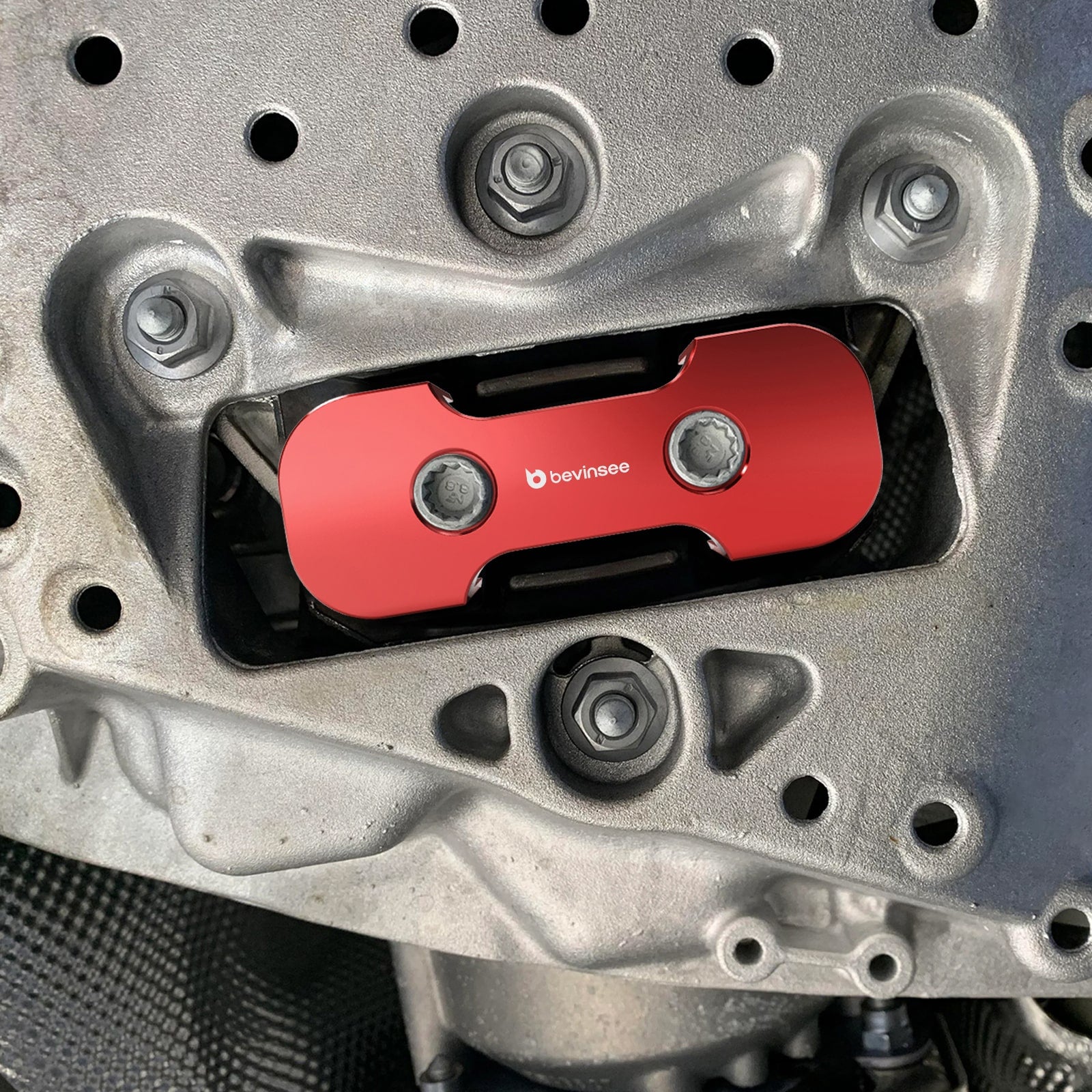

4. Apply Silicone Grease to the legs of the Bevinsee Transmission Mount Insert and press into the factory transmission mount assembly
5. Refit 2x OEM bolts, Torque the factory M8 bolts to 20 NM +90 Degree with Loctite
6. Your installation is now complete. Enjoy Your New Performance!
