Descriptions:
Are your brake pads wearing unevenly? Is your brake pedal starting to feel sloppy and unpredictable? If not, then your caliper might be twisting! The factory rubber bushings allow for deflection - even more so when they are worn, which leads to uneven pad wear and rotor deposits when pushed to the limits. For this reason, we have introduced brass bushings to eliminate caliper twisting caused by rubber guide pin bushings.
Features:

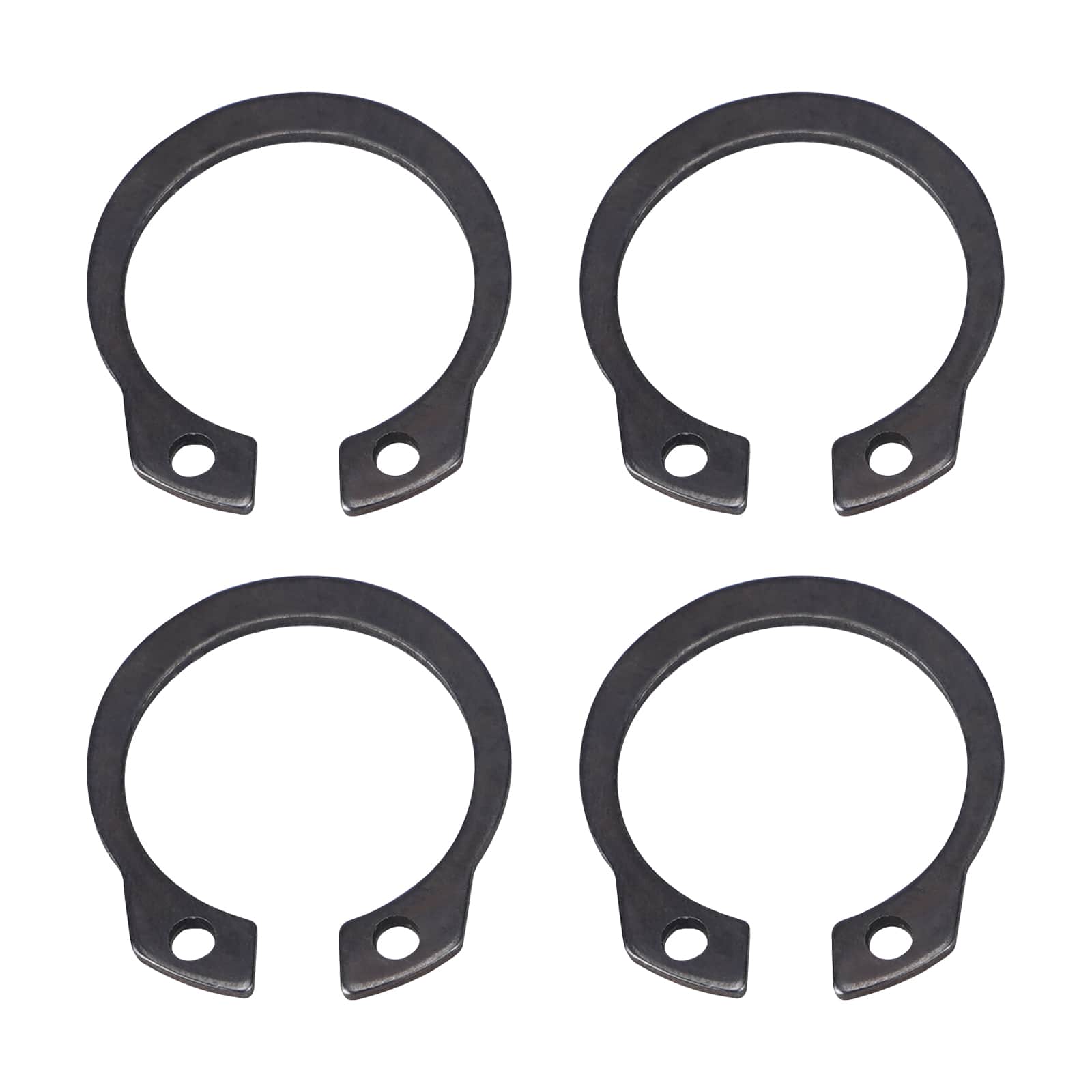

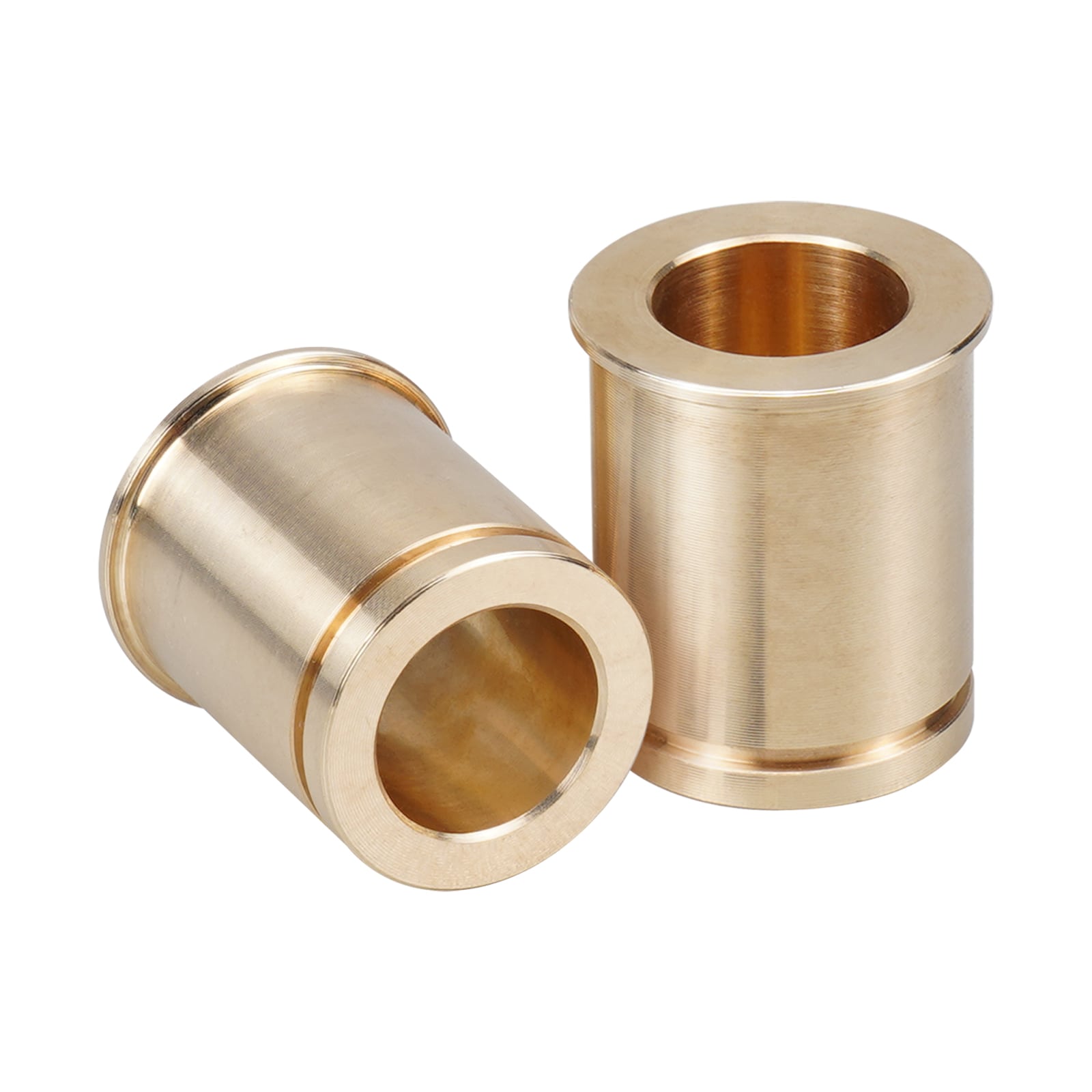

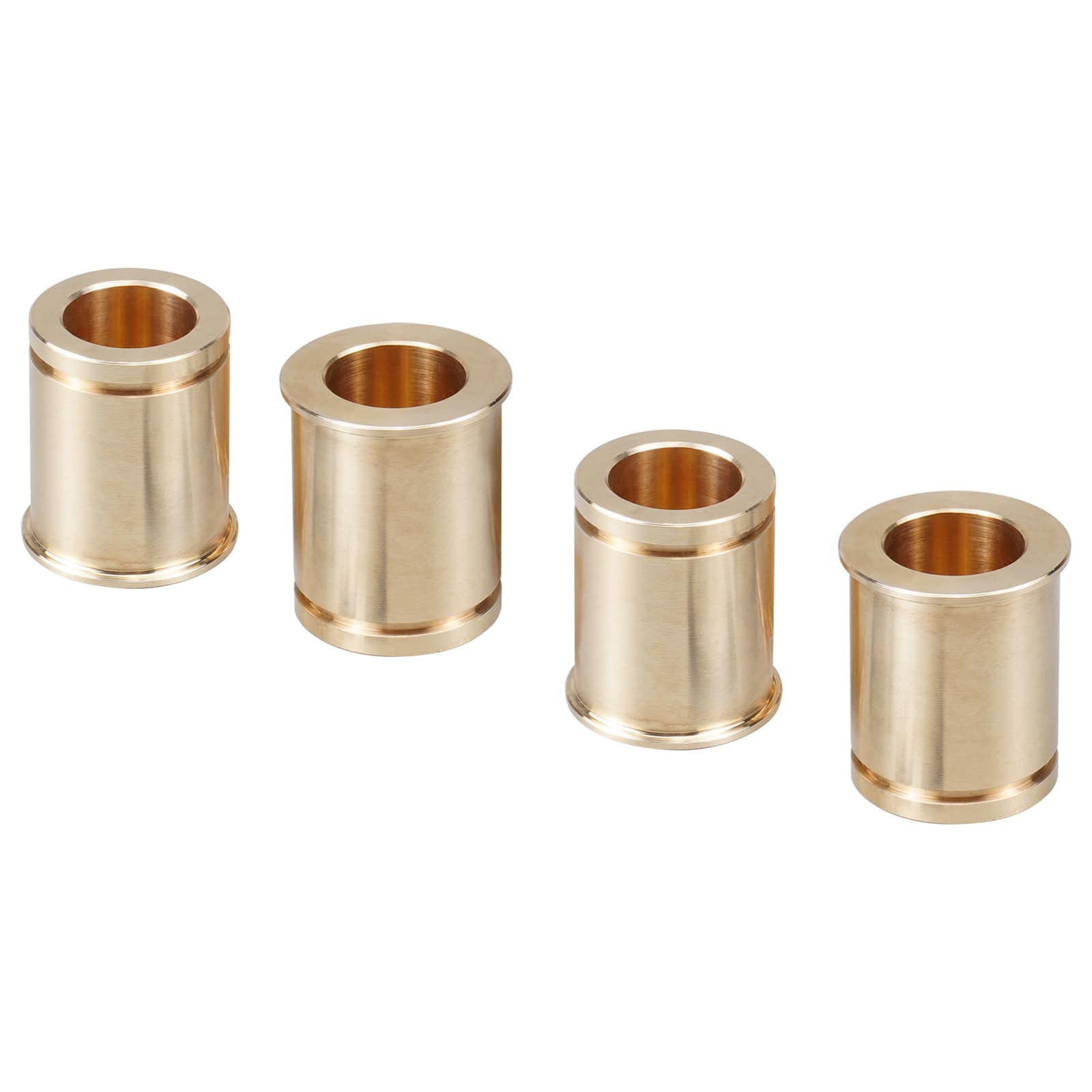

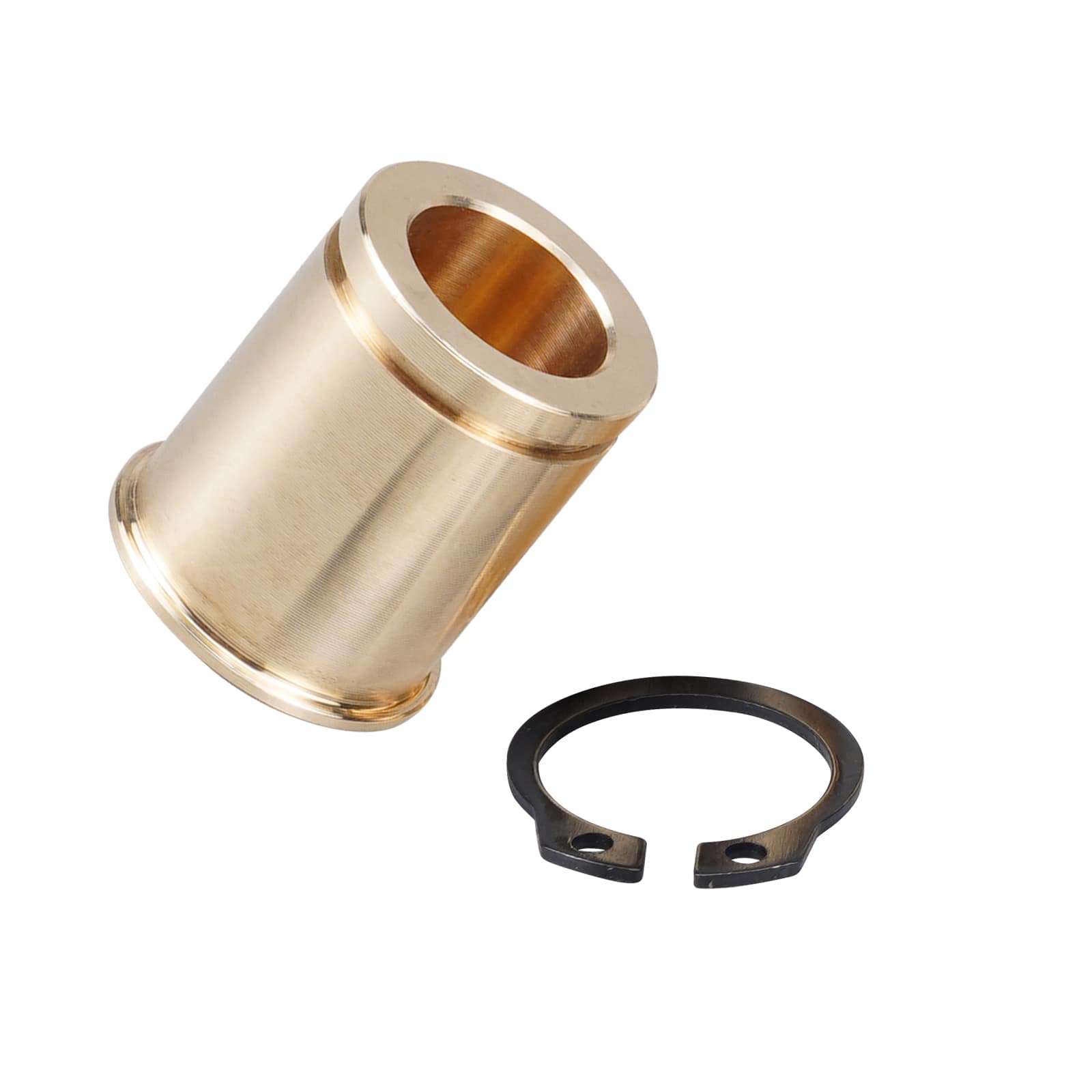

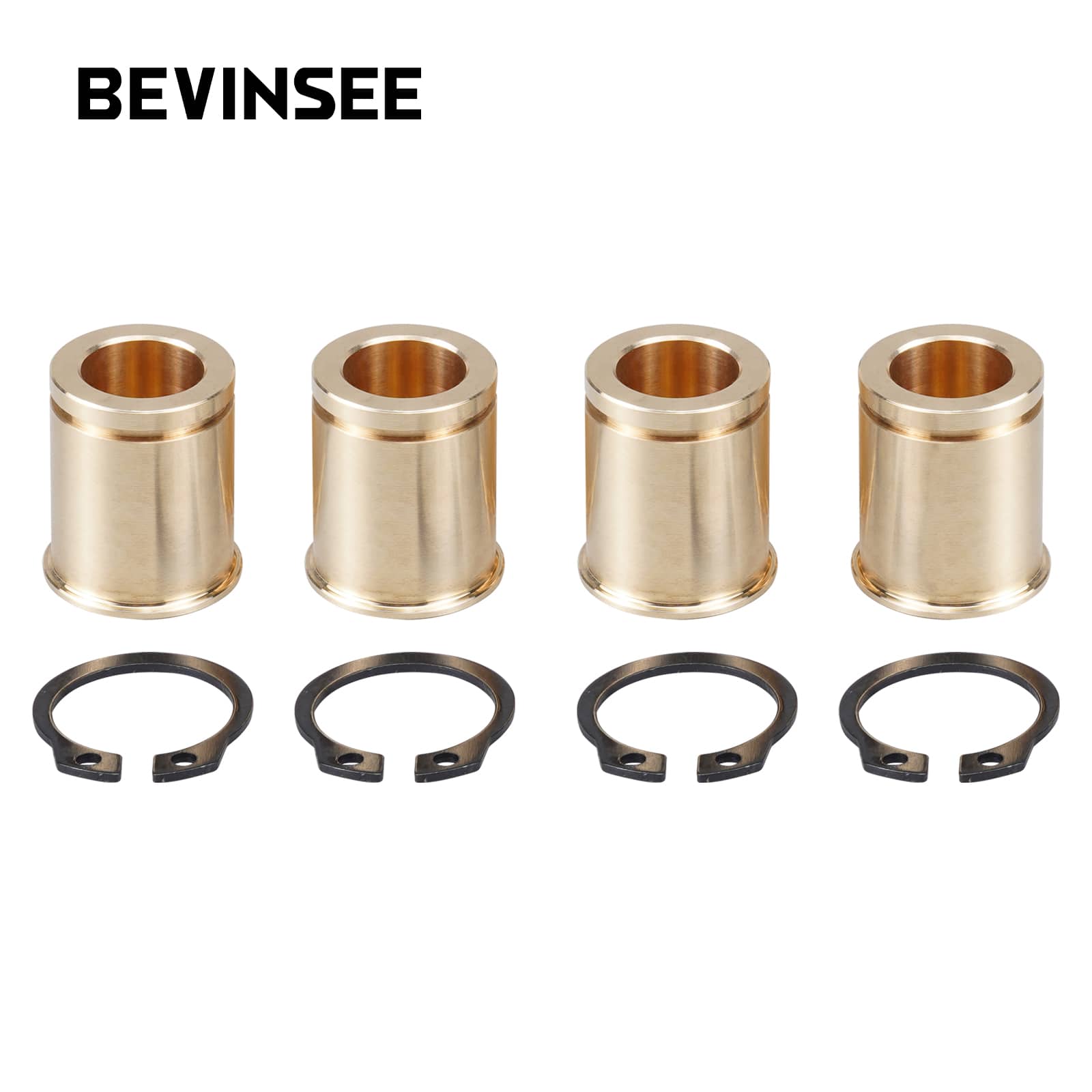

- This brass bushing kit includes machined tight-tolerance brass guide bushings and retaining clips that allow your calipers to evenly squeeze both sides of the discs.
- Extends the service life of brake pads and provides more consistent brake control feel.
- Easy to install, perfect fit for ATE Manufacturing factory single caliper.
Specifications:
Brand: BEVINSEE
Condition: Brand new
Material: Brass
Type: Brass Brake Caliper Guide Bushing
Item include: Set of four; enough to do 2 calipers (So if you want to do front and rear, order 2 kits)
Note: This will NOT FIT any Girling E30 318/325 calipers, E28 M5, E24 M6, 850csi, E9x M3, 135i optional front 6-piston calipers.
Fitment:
For BMW 1 Series:
E82 / E88 (2008-2013) > 128i
For BMW 3 Series:
E30 (1984-1991) > 318i
E30 (1984-1991) > 318is
E30 (1984-1991) > 325e
E30 (1984-1991) > 325es
E30 (1984-1991) > 325i
E30 (1984-1991) > 325is
E30 (1984-1991) > 325ix
E30 (1984-1991) > M3
For BMW 3 Series:
E36 (1992-1999) > 318i M42
E36 (1992-1999) > 318i M44
E36 (1992-1999) > 318ic M42
E36 (1992-1999) > 318ic M44
E36 (1992-1999) > 318is M42
E36 (1992-1999) > 318is M44
E36 (1992-1999) > 323ic
E36 (1992-1999) > 323is
E36 (1992-1999) > 325i
E36 (1992-1999) > 325ic
E36 (1992-1999) > 325is
E36 (1992-1999) > 328i
E36 (1992-1999) > 328ic
E36 (1992-1999) > 328is
E36 (1992-1999) > M3 (1995)
E36 (1992-1999) > M3 (1996-1999)
For BMW 3 Series:
E36/5 (1995-1998) > 318ti M42
E36/5 (1995-1998) > 318ti M44
For BMW 3 Series:
E46 (1999-2005) > 323Ci
E46 (1999-2005) > 323i
E46 (1999-2005) > 325Ci
E46 (1999-2005) > 325i
E46 (1999-2005) > 325xi
E46 (1999-2005) > 328Ci
E46 (1999-2005) > 328i
E46 (1999-2005) > 330Ci
E46 (1999-2005) > 330i
E46 (1999-2005) > 330xi
E46 (1999-2005) > M3
For BMW 3 Series:
E90 / E91 / E92 / E93 (2006-2013) > 325i
E90 / E91 / E92 / E93 (2006-2013) > 325xi
E90 / E91 / E92 / E93 (2006-2013) > 328i
E90 / E91 / E92 / E93 (2006-2013) > 328xi
E90 / E91 / E92 / E93 (2006-2013) > 330i
E90 / E91 / E92 / E93 (2006-2013) > 330xi
For BMW 5 Series:
E28 (1982-1988) > 528e
E28 (1982-1988) > 533i
E28 (1982-1988) > 535i
E28 (1982-1988) > M5 (1987-1988)
For BMW 5 Series:
E34 (1989-1995) > 525i M20
E34 (1989-1995) > 525i M50
E34 (1989-1995) > 530i
E34 (1989-1995) > 535i
E34 (1989-1995) > 540i
E34 (1989-1995) > M5 (1991-1995)
For BMW 5 Series:
E39 (1996-2003) > 528i
E39 (1996-2003) > 530i
E39 (1996-2003) > 540i
E39 (1996-2003) > M5 (1996-2003)
For BMW 6 Series:
E24 (1977-1989) > 630CSi
E24 (1977-1989) > 633CSi
E24 (1977-1989) > 635CSi
E24 (1977-1989) > M6
For BMW 7 Series:
E32 (1988-1994) > 735i
E32 (1988-1994) > 735iL
E32 (1988-1994) > 740i
E32 (1988-1994) > 740iL
E32 (1988-1994) > 750iL
For BMW 8 Series:
E31 (1991-1997) > 840Ci
E31 (1991-1997) > 850CSi
E31 (1991-1997) > 850Ci
For BMW Z Series:
E36/7 / E36/8 Z3 (1996-2002) > Z3 1.9
E36/7 / E36/8 Z3 (1996-2002) > Z3 2.3
E36/7 / E36/8 Z3 (1996-2002) > Z3 2.5
E36/7 / E36/8 Z3 (1996-2002) > Z3 2.8
E36/7 / E36/8 Z3 (1996-2002) > Z3 3.0
E36/7 / E36/8 Z3 (1996-2002) > Z3 M – S52
E36/7 / E36/8 Z3 (1996-2002) > Z3 M – S54
For BMW Z Series:
E85 / E86 Z4 (2003-2008) > Z4 2.5i M54
E85 / E86 Z4 (2003-2008) > Z4 3.0i M54
E85 / E86 Z4 (2006-2008) > Z4 3.0i N52
E85 / E86 Z4 (2006-2008) > Z4 3.0si N52
E85 / E86 Z4 (2003-2008) > Z4 M
For BMW Z Series:
E89 Z4 (2009+) > Z4 sDrive28i
E89 Z4 (2009+) > Z4 sDrive30i
E89 Z4 (2009+) > Z4 sDrive35i
